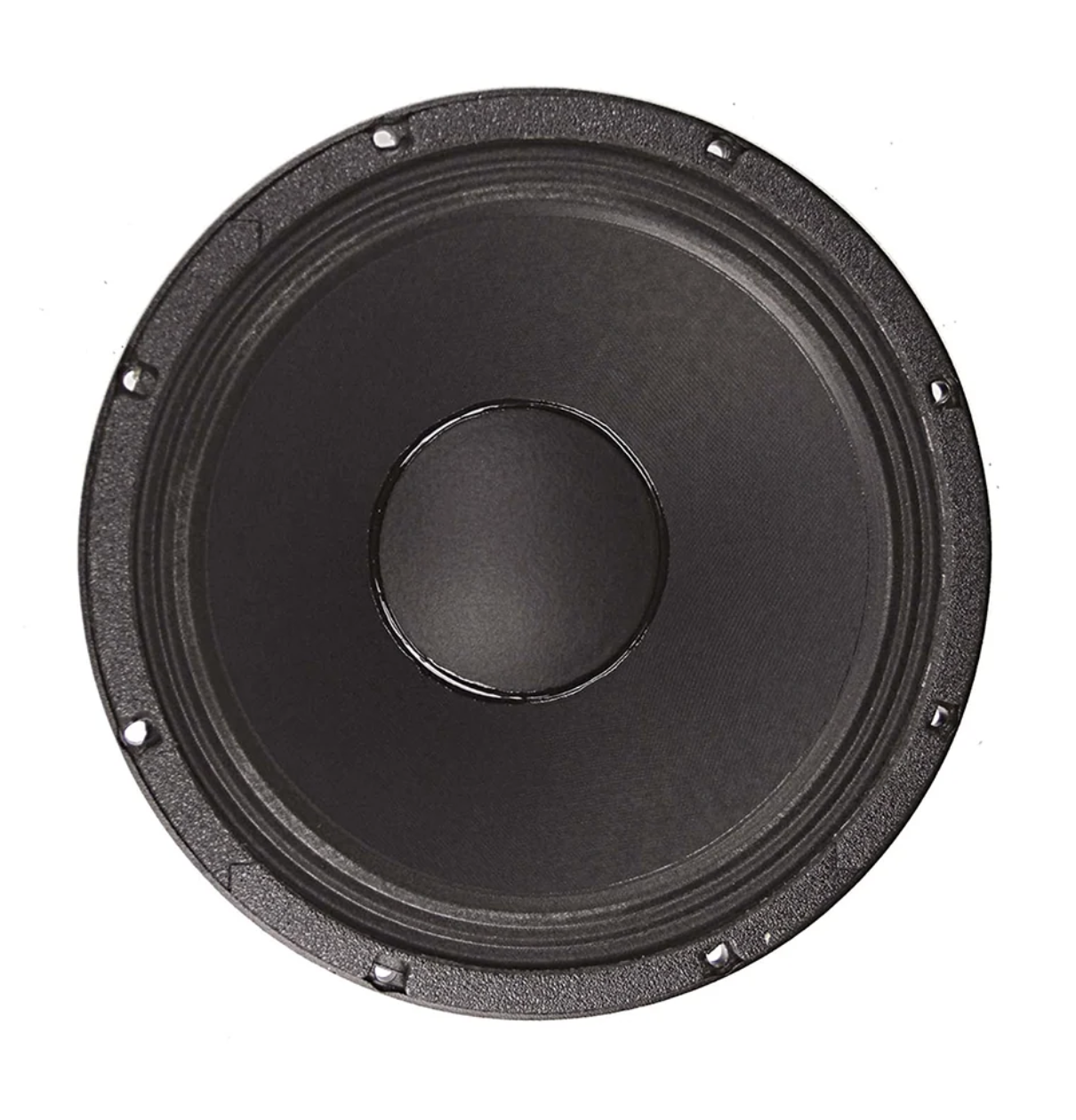

Product Description
A high power 12 inch guitar speaker featuring ultra-clean tone with big, round, punchy lows and warm, smooth mids and highs. A more neutral tone so you can hear more of your amp and guitar.
Characteristics
| Series | Legends |
| Model | Legend EM12 |
| Application | 12" Open or Closed Back |
| Configuration | 1, 2, or 4 X 12" |
| Low End Response | Aggressive |
| Low End Shape | Fat/Round |
| Mid-Range Response | Moderate |
| Mid-Range Shape | Warm |
| High-End Response | Moderate |
| Volume/Power | Louder |
| Overall Coloration* | Ultra clean with big, round, punchy lows and warm, smooth mids and highs. A more neutral tone so you can hear more of the amp and guitar. |
| Break-up Modes | Slow |
| Power Range | Up to 200 watts |
| Instrument* | Lead/Rhythm Guitar |
| Genre of Music* | Blues, Rock, Country, Jazz, Metal |
Specifications
| SPECIFICATION | |
| Nominal Basket Diameter | 12", 305 mm |
| Nominal Impedance* | 8 Ω |
| Power Rating* | |
| Program Power | N/A |
| Watts | 200 W |
| Resonance | 49 Hz |
| Usable Frequency Range | 60 Hz - 4.9 kHz |
| Sensitivity* | 101.1 dB |
| Magnet Weight | 80 oz. |
| Gap Height | 0.375", 9.5 mm |
| Voice Coil Diameter | 2.5", 64 mm |
| THIELE & SMALL PARAMETERS | |
| Resonant Frequency (fs) | 49 Hz |
| DC Resistance (Re) | 6.6 Ω |
| Coil Inductance (Le) | 0.49m H |
| Mechanical Q (Qms) | 7.39 |
| Electromagnetic Q (Qes) | 0.29 |
| Total Q (Qts) | 0.28 |
| Compliance Equivalent Volume (Vas) | 102.31 liters / 3.61 cu.ft. |
| Peak Diaphragm Displacement Volume (Vd) | 68 cc |
| Mechanical Compliance of Suspension (Cms) | 0.26 mm/N |
| BL Product (BL) | 16.9 T-M |
| Diaphragm Mass Inc. Airload (MMs) | 40 grams |
| Efficiency Bandwidth Product (EBP) | 170 |
| Maximum Linear Excursion (Xmax) | 1.27 mm |
| Surface Area of Cone (Sd) | 532.4 cm2 |
| Maximum Mechanical Limit (Xlim) | N/A |
| MOUNTING INFORMATION | |
| Recommended Enclosure Volume | |
| Sealed | Acceptable |
| Vented | Acceptable |
| Driver Volume Displaced | 0.09 cu.ft. / 2.55 liters |
| Overall Diameter | 12.38", 314.5 mm |
| Baffle Hole Diameter | 11.07", 281.2 mm |
| Front Sealing Gasket | Yes |
| Rear Sealing Gasket | Yes |
| Mounting Holes Diameter | 0.26", 6.6mm |
| Mounting Holes B.C.D. | 11.57", 293.9mm |
| Depth | 5.38", 136.5 mm |
| Net Weight | 16.3 lbs, 7.39 kg |
| Shipping Weight | 18 lbs, 8.16 kgs |
| MATERIALS OF CONSTRUCTION | |
| Coil Construction | Edge wound aluminum voice coil |
| Coil Former | Polyimide former |
| Magnet Composition | Ferrite magnet |
| Core Details | Vented core |
| Basket Materials | Die cast aluminum basket |
| Cone Composition | Paper cone |
| Cone Edge Composition | Cloth edge |
| Dust Cap Composition | Paper dust cap |
Watts: 200w
Voice Coil Size: 2.5 (64mm)
Speaker Size: 12"
Impedance: 8Ω
Recommended Enclosure: Sealed / Closed Back | Vented / Open Back
Cone Composition: ["Paper"]
Speaker Weight: {"value":7.39,"unit":"kg"}
Magnet Type: Ferrite / Ceramic
Impedance: 8Ω
